GEPRC Mark4 10" Frame Kit
GEPRC Mark4 10" Frame Kit
In Stock
![](https://www.getfpv.com/static/version1718704512/frontend/Getfpv/default/en_US/Amasty_Rewards/images/ajax-loader.gif)
About this product

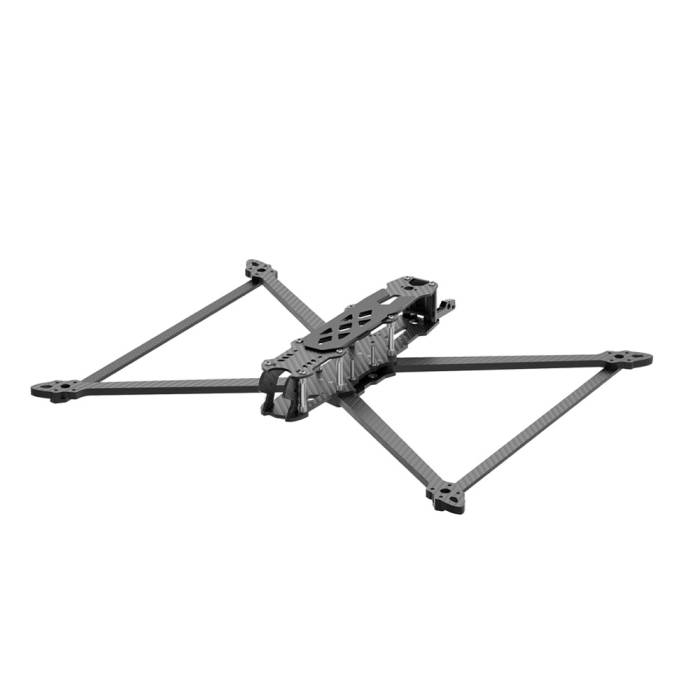

GEPRC Mark4 10" is a frame designed to manage heavy-load flights. It can carry a maximum payload of 3kg when applied with a 3214 or 3115 900KV motor. The light-design structure enables immediate response even when flying with extra weight. The FC fixing hole size is 30.5×30.5mm(M3), the Camera lens fixing hole size is 19x19 mm(M2), Motor fixing hole size is 19x19mm(M3). Reserved enough space for VTX installation at the end of the frame, and the extended dimension frame can mount up to LiPo 6S 8000mah battery.
Note: This kit requires assembly.
VIDEO: (Insert Video Title here in Bold)
Features
- Vertical-Shaped Reinforced Arms
- 3.7mm Thickness Arm Structure
- Versatile VTX Fixing Hole Sizes
- Extended Dimension Frame
- 30mm Aluminum Standoff
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- VTX mounting pattern: 30.5 x 30.5mm (M3) / 25.5 x 25.5mm (M2) / 20 x 20mm (M2)
- Camera mounting pattern: 19 x 19mm (M2)
- Motor mounting pattern: 19 x 19mm (M3)
- FC mounting pattern: 30.5 x 30.5mm (M3)
- Dimension: 376mm x 303mm
- Item: GEP-Mark4-10 Frame
- Motor to motor: 428mm
- Side plate: 2.5mm
- Base plate: 3mm
- Arm plate: 7mm
- Weight: 270.0g
- Top plate: 2mm
- Midplate: 3mm
- Armbar: 3mm
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Battery silicone anti-slip pad
- 1x GEPRC Mark4 10" Frame Kit
- 1x M20x300mm battery strap
- 4x EVA landing pads
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 22066 |
---|---|
UPC (GTIN) | 724376362813 |
Manufacturer | GEPRC |
NDAA Compliant | No |
Item Returns | This item can be returned |
