GEPRC SpeedX2 3214 Motor - 860KV
GEPRC SpeedX2 3214 Motor - 860KV
In Stock
![](https://www.getfpv.com/static/version1718704512/frontend/Getfpv/default/en_US/Amasty_Rewards/images/ajax-loader.gif)
About this product
The GEPRC SPEEDX2 3214 motor is specially designed for 9-10 inch long-range FPV. Its large size provides powerful power for your flight. The high torque of 860KV makes the payload more manageable. The overall combination of red and dark tones highlights its distinctive appearance. High-end bearing shafts are used to ensure the smooth operation of the motor.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- High-Temperature Resistant Enameled Wire
- Personalized Hollow Appearance
- Efficient Power and Current
- Lightweight Construction
- Premium Rotor Material
- Integrated Outer Rotor
- Versatile Compatibility
- Convenient Mounting
- High-Quality Magnets
- Robust Configuration
- Optimal Dimensions
- Long Lead Length

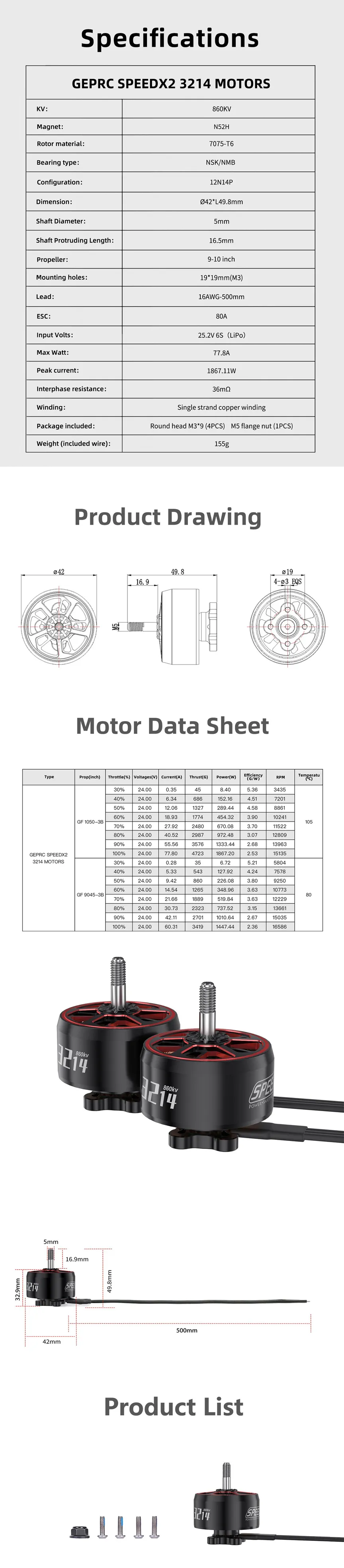

![](https://cdn-v2.getfpv.com/media/wysiwyg/GEPRC_SpeedX2_3214_Motor_-_860KV_Graphic_Info.webp)
![](https://cdn-v2.getfpv.com/media/wysiwyg/GEPRC_SpeedX2_3214_Motor_-_860KV_Graphic_Info.webp)
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Applicable Models: Suitable for 9-10 inch models
- Rotor Material: 7075-T6 aviation aluminum alloy
- Outlet Specification: 16AWG 500mm
- Mounting Hole: 19x19mm (M3)
- Dimensions: Φ42mm * 49.8mm
- Output Shaft Diameter: Φ5mm
- Rated Voltage: 25.2V 6S (LiPo)
- Model: SPEEDX2 3214 Motor
- Maximum Power: 1867.11W
- Maximum Current: 77.8A
- Stator Diameter: 32mm
- Configuration: 12N14P
- Stator Height: 14mm
- Color: Red and black
- Weight: 155.0g
- Magnet: N52H
- KV: 860KV
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x GEPRC SpeedX2 3214 Motor - 860KV
- 1x Hardware Set
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 22070 |
---|---|
UPC (GTIN) | 724376362905 |
Manufacturer | GEPRC |
NDAA Compliant | No |
Popo Compatible | No |
Item Returns | This item can be returned |
