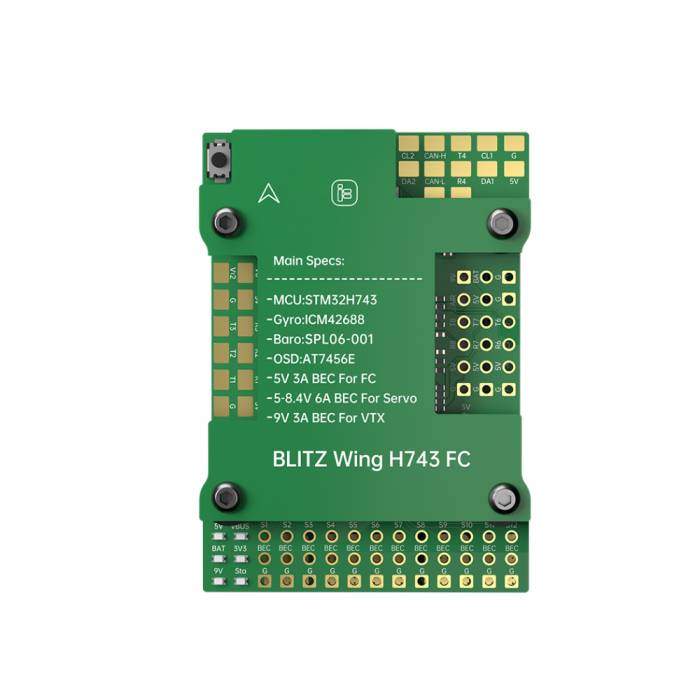

iFlight BLITZ H743 Wing Flight Controller - 30x30
iFlight BLITZ H743 Wing Flight Controller - 30x30
In Stock
About this product
Introducing iFlight Blitz H743 wing Flight Controller, designed specifically for fixed-wing UAV enthusiasts, is compatible with Betaflight, INAV, and Ardupilot. This controller is tailored to meet the needs of hobbyists who are passionate about model aviation, providing a reliable and efficient solution for their aircraft. With advanced features and compatibility with popular software platforms, our flight controller offers a superior flying experience for enthusiasts looking to take their fixed-wing UAVs to the next level.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- Independent 6A Servo Power Supply
- Dual Analog Camera Input Function
- Supports External Airspeed Sensor
- Powerful STM32H743 Main MCU
- Reserved Soldering Pad Design
- Onboard Current Meter
- Onboard SD Card Slot
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Supported Protocol: Smartaudio / IRC Tramp VTX
- BF Firmware Target: IFLIGHT_BLITZ_Wing_H743
- Ardupilot Firmware: IFLIGHT_BLITZ_Wing_H743
- INAV Firmware: IFLIGHT_BLITZ_Wing_H743
- BEC: 5V 2.5A / 9V 2.5A / 5-8.4V 6A
- Switchable Outputs: 5V/7.4V/8.4V
- Mount Pattern: 30.5*30.5mm/φ4
- I2C Serial: SDA / SLA pads
- Dimensions: 36.9*52mm
- BlackBox: MicroSD card
- WS2812 LED Strip: Yes
- DC IN: 7-36V (2-8S)
- MCU: STM32H743
- Gyro: ICM42688P
- Beeper Pad: Yes
- OSD: AT7456E
- Baro: DPS310
- Weight: 35g
- UARTs: 8
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x iFlight BLITZ H743 Wing Flight Controller - 30x30
- 1x Silicone Grommets
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 22112 |
---|---|
UPC (GTIN) | 724376363346 |
Manufacturer | iFlight |
Mounting Pattern | 30.5x30.5mm |
NDAA Compliant | No |
Item Returns | This item can be returned |
