Lumenier SAM-M10Q GPS Module - NDAA
This Lumenier GPS Module features an integrated UBLOX SAM-M10Q and magnetometer for precise positioning in a compact and lightweight design.
NDAA Compliant Product
About this product
Note: The next batch shipment estimate is June 2024.

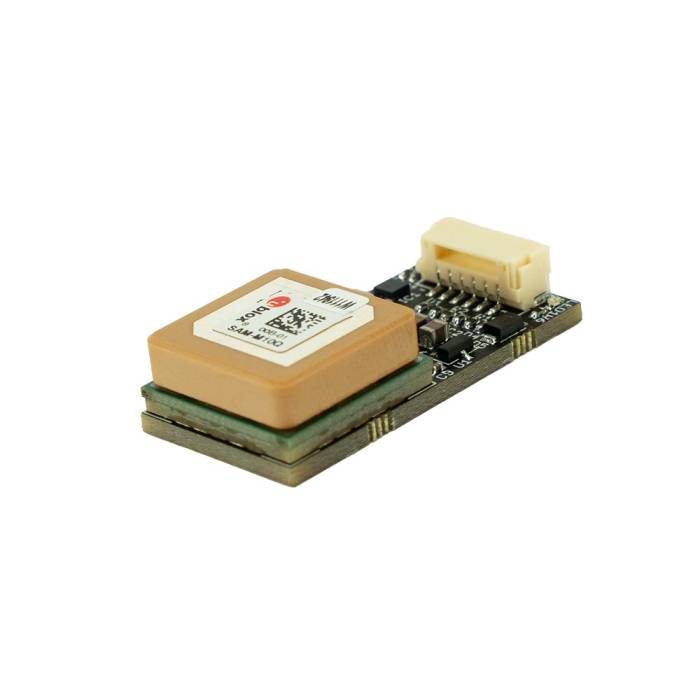

This Lumenier GPS Module, designed and manufactured in the USA, features an integrated UBLOX SAM-M10Q GPS and an onboard LIS3MDL magnetometer. It boasts a wide voltage range of 5-34V, reverse polarity protection, and ESD-protected 3.3V logic levels. With NDAA compliance and individual test reports included, this lightweight module ensures reliable performance for your FPV drone needs.
Proudly designed and manufactured in the USA!
Features

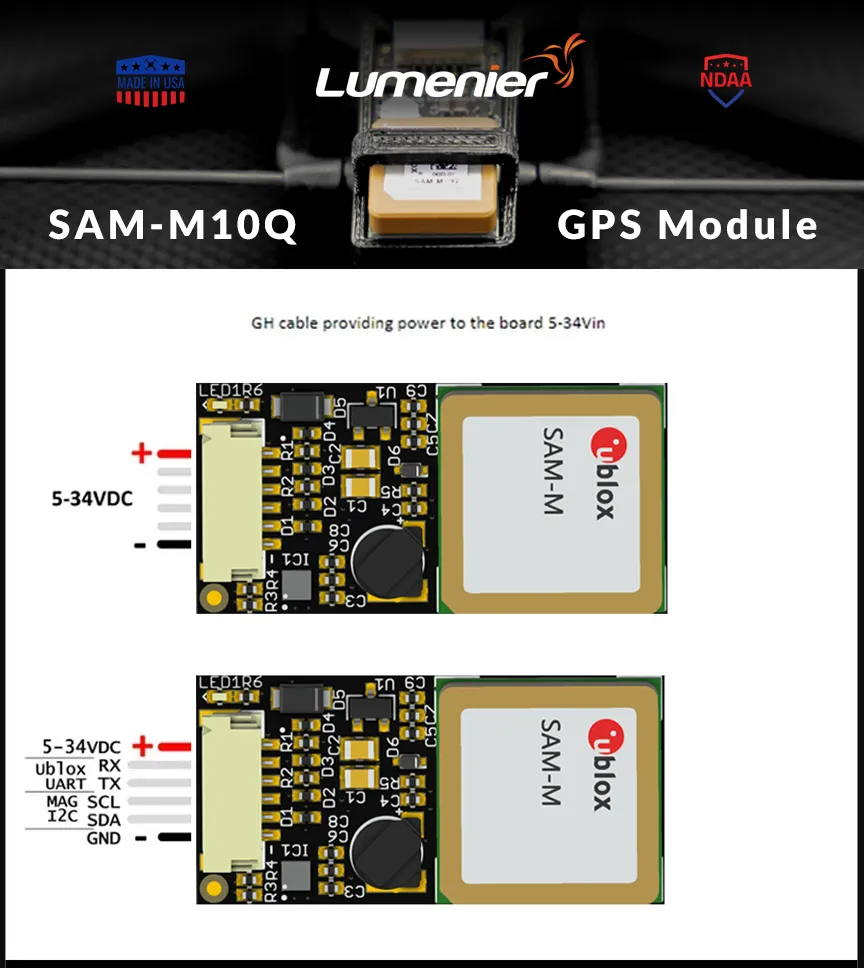

- The onboard connector uses a “Basic GPS” pinout from Pixhawk standard
- Efficient power design with a wide voltage range of 5-34V (2s-8s)
- Redundant soldering pads for GPS and magnetometer
- Designed and manufactured in the USA
- Integrated UBLOX SAM-M10Q GPS
- 3.3V Logic levels – ESD-protected
- Onboard LIS3MDL magnetometer
- Red/Green LED status indicator
- Individual test reports included
- Reverse Polarity Protection
- Time Pulse LED indicator
- Made in the USA
- NDAA compliant
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- GPS: Integrated UBLOX SAM-M10Q
- Onboard Magnetometer: LIS3MDL
- Logic Levels: 3.3V (ESD-protected)
- Magnetometer I2C Address: 0x1E
- Reverse Polarity Protection: Yes
- Voltage Range: 5-34V (2-8S)
- Size: 32.5x16x8mm
- Lightweight 8g
IMPORTANT NOTES
Recommended (Not Included)
Links
- Download the Lumenier RID 3D Model STP File to integrate it into your own designs.
- Want to print your own TPU mounts? Download the 3D Mount Files here:
Includes
- 1x Lumenier SAM-M10Q GPS Module - NDAA
- 1x Test Report Receipt Sticker
- 1x GH 6-pin to GH 6-pin
- 1x GH 6-pin to SH 6-pin
- 1x GH 6-pin to Pigtail
- 1x Heat Shrink
More Information
SKU | 22281 |
---|---|
UPC (GTIN) | 724376363575 |
Manufacturer | Lumenier |
NDAA Compliant | Yes |
Expected Date | 2024-06-26 |
