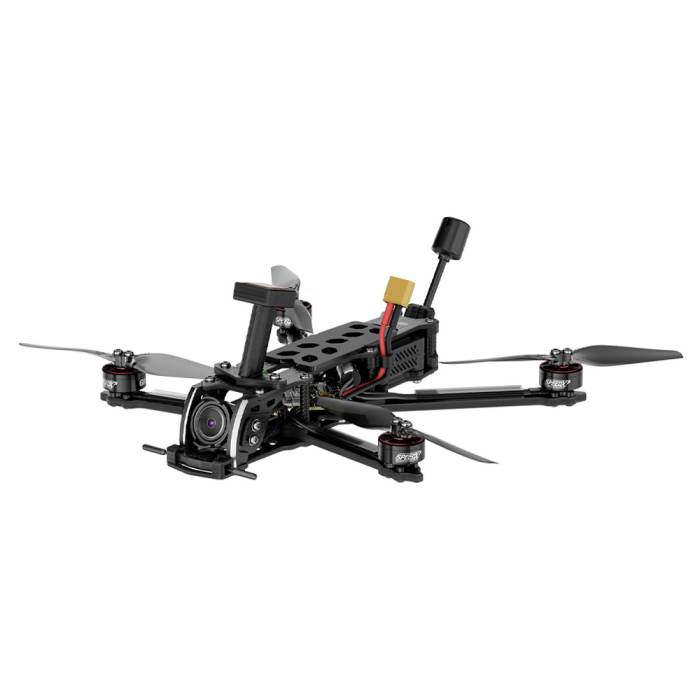

GEPRC Tern LR40 Drone HD w/ DJI 03
GEPRC Tern LR40 Drone HD w/ DJI 03
Select options for stock status
About this product
We are excited to introduce the Tern-LR40 to the GEPRC family, a 4-inch long-range FPV offering excellent performance and reliability with a lightweight DC-type structure made from aviation-grade 7075 aluminum. Equipped with the Taker G4 45A AIO flight control and a top-mounted GPS, it minimizes electromagnetic interference and enhances the stability of the rescue function. The Tern-LR40 flies freely like a bird, providing a high-quality flight and an artistic journey.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: GEPRC TERN-LR40 4 INCH LONG RANGE FPV | ????NEW RELEASE????
Features
- DC Structure for Improved Aerial Photography
- Compatible GoPro Mount Installation
- Advanced GPS Fixation Method
- High-Speed GPS Performance
- Battery Low Voltage Alarm
- New Lightweight Design
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Recommended Battery: LiPo 4S 660mAh-850mAh / 18650 3000mAh
- Receiver: DJI PNP/ ELRS 2.4GHz/ ELRS 915MHz/ TBS Crossfire
- Propellers: HQProp T4X2.5 Grey (2CW + 2CCW)
- Tern-LR40 O3 PNP Version Weight: 180g ± 5g
- Motors: GEP-SPEEDX2 1404 3000KV
- OSD: Betaflight OSD w/ AT7456E
- MCU: STM32G473CEU6
- Frame: Tern-LR40 Frame
- Arm Thickness: 3.5mm
- Flight Time: 10-25 min
- FC: Taker G4 45A AIO
- Antenna: 5.8G & 2.4G
- Bottom Plate: 1.5mm
- Camera: O3 Camera
- Wheelbase: 180mm
- Gyro: ICM 42688-P
- Model: Tern-LR40
- Mid Plate: 2.0mm
- Top Plate: 1.5mm
- Connector: XT30
- VTX: O3 Air Unit
- ESC: 32Bit 45A
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x GEPRC Tern LR40 Drone HD w/ DJI 03 (Choose your receiver)
- 1x HQprop T4x2.5 propeller (pack)
- 1x L-shaped screwdriver (1.5mm)
- 1x GoPro camera mount holder
- 4x Battery Strap M15*170mm
- 1x T-type antenna mount
- 2x Battery anti-slip pads
- 1x Hardware set
- 1x RC printed
